- Superior small-particle filtration, including soot removal
- Increased filtration capacity and life
- Equipment constantly runs on clean oil
- Helps increase engine efficiency and life
- Helps reduce maintenance costs
- This system connects to the engine through a pressurized oil port
Product Overview

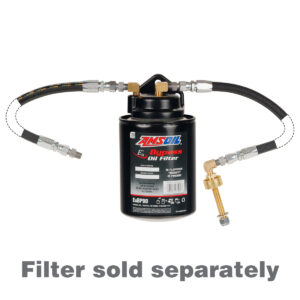

The Bypass Oil Filter (EaBP) provides the best possible filtration protection against wear and oil degradation. Working in conjunction with the engine’s full-flow oil filter, the AMSOIL Ea Bypass Filter operates by filtering oil on a “partial-flow” basis. It draws approximately 10 percent of the oil pump’s capacity at any one time and traps the extremely small, wear-causing contaminants that full-flow filters can’t remove. The AMSOIL Ea Bypass Filter typically filters all the oil in the system several times an hour, so the engine continuously receives analytically clean oil.
Filter Service Intervals
Ea Bypass Filters offer long service life. Do not exceed the limits listed in the chart below.
| EaBP90 | EaBP100 | EaBP110 | |
| Mileage | 60,000 | 70,000 | 80,000 |
| Hours | 600 | 800 | 1,200 |
| Time | 2 years | 2 years | 2 years |
Ready to buy or need help selecting the right product?
Product information checked: September 2026. Product formulations, specifications, applications, availability and published claims can change.
For the latest official information, consult the AMSOIL Corproate Website.
